SP Building Systems Tech Loc sandwich panels are used when the designer requires that special architectural effect, combined with weather tightness, all at an affordable price.

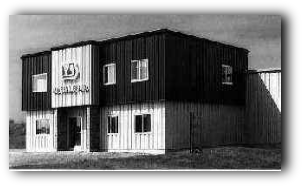

Tech Loc sculptured fluted panels are used architecturally to complement the brick and glass on this office. The interlocking, concealed fastener features of this panel result in a smooth, contemporary, aesthetic appearance.
Tech Loc Sculptured embossed, interlocking panels are used in contrasting colours for an architectural effect on the office area and in white for the shop area of this transportation service facility.
All Tech Loc sandwich panels are manufactured in Canada by SP Building Systems. Tech Loc Panels have 3" deep interlocking side-ribs giving them structural strength to span up to 14' without support in many applications. This strength allows the Tech Loc System to be used as a aroof and wall panel, without structural frame support, in SP Building Systems Tech Loc Self-framing building system.
Tech Loc Flat wall panel can be used as a sandwich panel with flat surface exposed or with ribs exposed for a special accent. The panel surface can be stucco embossed or have 3 light flutes for architectural detail.
Tech Loc Flat wall panel makes a standing seam roof that, when used with steeper roof pitches, gives a distinct, contemporary, batten-like appearance. On all roof slopes, the panels make a functional weather-tight roof system.
Tech Loc Flat wall panel makes a standing seam roof that, when used with steeper roof pitches, gives a distinct, contemporary, batten-like appearance. On all roof slopes, the panels make a functional weather-tight roof system.
| Panel Width | 16" |
| Panel Depth | 3" deep |
| Stiffening Flutes | (Optional) one on each rib |
| Embossed | Standard |
| Max Length | 45 ft. (longer if required but needs special care in handling) |
| Min Length | 4'-6" |
| Crating | Band & Block in bundles of 20 panels |
| Gauge | Stocked in 24 gauge. (22 & 26 available on special orders) |
| Colours | Contact SP Building Systems for more information |
| Base Stock | Standard galvalume AZ150, grade 37 (Galvanized available on special order) |
| Panel Width | Cover 16" |
| Panel Depth | 3" deep |
| Stiffening Flutes | (Optional ) 3 between ribs |
| Embossed | Optional |
| Max Length | 45 ft. (longer if required but needs special care in handling) |
| Min Length | 4'-6" |
| Crating | Band & Block in bundles of 20 panels |
| Gauge | Stocked in 20,22 and 24 gauge. |
| Colours | Standard colours: Bright White is the standard colour. A wide selection of additional colours are available on special order |
| Base Stock | Standard galvalume AZ150, grade 37 (Galvanized available on special order) |
SP Building Systems Tech Loc sculptured sandwich panel system is a quality concealed-fastener wall panel, for use in special architectural applications or as a premium building system wall panel.
Tech Loc sculptured wall panel has a contemporary, architectural box appearance. Available in a variety of colours, the panel surface can be embossed in a stucco style or fluted for additional effect.
Tech Loc sculptured wall panel has a contemporary, architectural box appearance. Available in a variety of colours, the panel surface can be embossed in a stucco style or fluted for additional effect.
Tech Loc Buildings Make Ideal:
Mechanical Rooms
Yard Offices
Pump Houses
Public Utilities Buildings
Monitor Stations
Switch or Electric Rooms
Chemical Storages
Guard Houses
Telecommunications Buildings
Mechanical Rooms
Yard Offices
Pump Houses
Public Utilities Buildings
Monitor Stations
Switch or Electric Rooms
Chemical Storages
Guard Houses
Telecommunications Buildings
SP Building Systems Tech Loc Building is an attractive, all-steel, industrial/commercial building system specifically designed for small building applications. They are designed to be durable, secure and are maintenance-free under the most severe conditions.
Design Specifications
Tech Loc Buildings are designed to meet or exceed the Canadian building Code and all Provincial building codes and drawings are stamped by a professional engineer.
Panel Design
Roof panels are 16" wide Tech Loc Flat panels in thicknesses from 24 gauge to 18 gauge or 24" wide Storm Loc 24 in 24 gauge. Gauge will depend upon design, load and span. Wall panels are 16" wide Tech Loc Sculptured or Flat panels in 24 gauge or optional Flat panels only in 18 gauge.
Bracing
Tech Loc interlocking roof and wall panels are fastened together to create designs of sufficient strength requiring no additional bracing under most design loads.
Foundation Requirements
Tech Loc Buildings can be erected on a concrete slab or wall; on top of structural steel or they can be pre-constructed off-site on a steel frame that can be shipped to the job site and lifted into place.
Materials
Roofing, siding and trims are manufactured from galvanized and galvalume steels. Tech Loc sandwich panels are available, unpainted, or pre-painted Bone White (QC 273) or other colours subject to availability.
Inside Finishes
Tech Loc Self-Framing buildings are easy to insulate with the addition of fiberglass batts; laminated-back fiberglass or rigid foam insulation. Liner panel can be attached directly to the inside ribs of the panel or a wood or metal strapping can be attached and then covered with a metal liner, plywood, drywall or other finishing materials.
Design Specifications
Tech Loc Buildings are designed to meet or exceed the Canadian building Code and all Provincial building codes and drawings are stamped by a professional engineer.
Panel Design
Roof panels are 16" wide Tech Loc Flat panels in thicknesses from 24 gauge to 18 gauge or 24" wide Storm Loc 24 in 24 gauge. Gauge will depend upon design, load and span. Wall panels are 16" wide Tech Loc Sculptured or Flat panels in 24 gauge or optional Flat panels only in 18 gauge.
Bracing
Tech Loc interlocking roof and wall panels are fastened together to create designs of sufficient strength requiring no additional bracing under most design loads.
Foundation Requirements
Tech Loc Buildings can be erected on a concrete slab or wall; on top of structural steel or they can be pre-constructed off-site on a steel frame that can be shipped to the job site and lifted into place.
Materials
Roofing, siding and trims are manufactured from galvanized and galvalume steels. Tech Loc sandwich panels are available, unpainted, or pre-painted Bone White (QC 273) or other colours subject to availability.
Inside Finishes
Tech Loc Self-Framing buildings are easy to insulate with the addition of fiberglass batts; laminated-back fiberglass or rigid foam insulation. Liner panel can be attached directly to the inside ribs of the panel or a wood or metal strapping can be attached and then covered with a metal liner, plywood, drywall or other finishing materials.
| Width | Length Min | Length Max | Height | Snow Load |
| 5'4" | 5'4" + Increments of 1'4" | *as req'd | 8 & 10 ft. | to 80 psf |
| 6'8" | 5'4" + Increments of 1'4" | *as req'd | 8 & 10 ft. | to 80 psf |
| 8'0" | 5'4" + Increments of 1'4" | *as req'd | 8 & 10 ft. | to 80 psf |
| 12'0" | 5'4" + Increments of 1'4" | *as req'd | 8 & 10 ft. | to 80 psf |
| Width | Length Min | Length Max | Height | Snow Load |
| 16 | 12' + increments of 1'4" | *as req'd | 8,10,12 ft. | to 80 psf |
| 20 | 12' + increments of 1'4" | *as req'd | 8,10,12 ft. | to 80 psf |
| 24 | 16' + increments of 1'4" | *as req'd | 8,10,12 ft. | to 80 psf |
